50mm Incremental Rotary Encoder For Small Appliance Control EC50A00V01

Model NO. : EC50A00V01

Package : -

Installation Form : -

Brand : Taowaves

Axonia : -

Customized : Support Customization

Transport Package : Carton

Specification : 50mm

Trademark : TAOWAVES

Origin : China

Type : Rotary Encoder

Working Principle : Incremental

Readout Mode : Contact

Operating System : Contact Brush Type

Signal Output : Voltage Output

Axle Sleeve Type : Empty Type

Customization : Available | Customized Request

Contact Now

50mm Incremental Rotary Encoder for Small Appliance Control
50mm Incremental Rotary Encoder For Small Appliance Control EC50A00V01

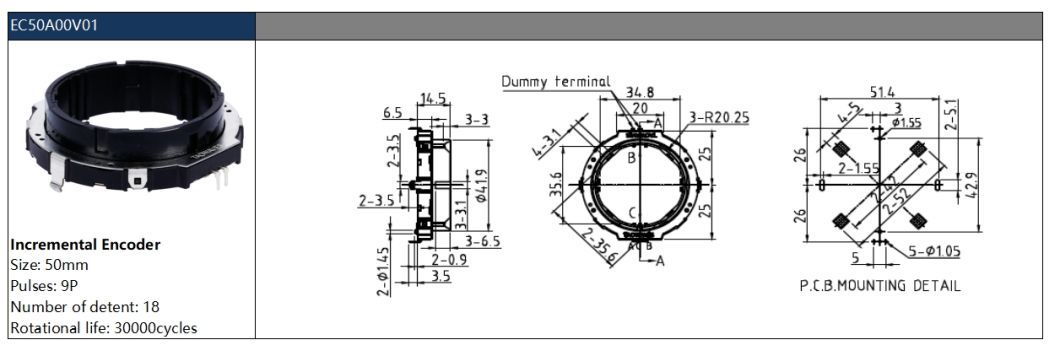

EC50 Series Product Specifications
1.Electrical Characteristics
Rated voltage:DC 5V
Resolution:9pulses/360°
Insulation resistance:10MΩ Min at DC 250V
Dielectric strength:1 minute at AC 50V
Phase Difference:9≥8.9ms
2.Mechanical Characteristics
Total ratational angle:360°(Endless)
Detent torque:40±14mN.m (400±140gf.cm)
Shaft wobble:0.3mm p-p Max
Push-Pull Strength of shaft10KG
3.Endurance Characteristics
Rotational life:30,000cycles
Operating temperature range:-40ºC to+85ºC
Storage temperature range:-40ºC to+85ºC

Our Factory
50mm Incremental Rotary Encoder For Small Appliance Control EC50A00V0150mm Incremental Rotary Encoder For Small Appliance Control EC50A00V0150mm Incremental Rotary Encoder For Small Appliance Control EC50A00V01Application:
50mm Incremental Rotary Encoder For Small Appliance Control EC50A00V01
50mm Incremental Rotary Encoder For Small Appliance Control EC50A00V01
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
